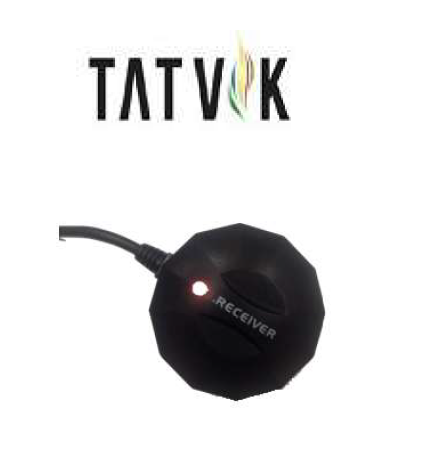

Tatvik GNSS100 GPS Receiver is highly accurate GPS receiver using GN03-A1 chipset. It supports all International standards which include NMEA 0183 protocol. GN03-A1 is a highperformance dual-band (L1/L5) GNSS/IRNSS positioning module. It supports the global civil navigation systems, including GPS, NavIC, BDS, GLONASS, Galileo, and QZSS.GNSS100 is UIDAI approved for enrolment kit. It supports Windows and Linux operating systems. Magnetic base provides non-slip on bottom.

Functionalities:

*   Connector: USB 3.0 Type A male.

*   Neoway GN03-A1 chipset .

*   Frequency: NavIC: L5 1176.45 MHz , GPS: L1, 1575.4200MHz

*   Accepts the signals of up to 72 satellites at the same time

*   Supports NMEA 0183 protocols: GGA, GSA, GSV, RMC, VTG

*   Auto Baud Rate up to 115200 bps

*   Sensibility max 167 dBm

*   IPX6 protection class

*   Magnetics, non-slip on the bottom

*   LED-indicator for GPS-status

*   Operating temperature: -35˚ C ~80˚ C

*   Power Supply: 5 Volt

*   Current consumption: max 45 mA

*   Cold start in ca. 26 seconds

*   Hot start in ca. 1 second

*   Positioning accuracy: 2.5 m CEP (Circular Error Probable) and 2 m CEP with SBAS

*   Cable Length: ca. 1.5m

*   Dimension (LxWxH): ca. 52 x 52 x 22 mm

Applications:

*   Location identification for work station.
