Product Details:
Make: TATVIK
Part Number: TMF20
Description:

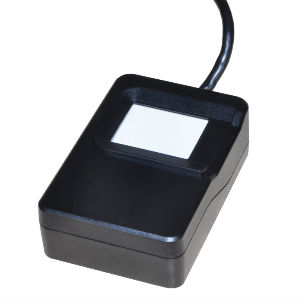

The TMF20 is a FAP20 optical fingerprint scanner that is housed in a durable and compact casing. Supports Windows, Linux and Android operating systems.
Powered by USB 2.0/3.0, allows for easy integration with new or existing applications. The durable and lightweight design allows the TMF20 to be portable without compromising image quality, it is ideal for biometric authentication and individual identity verification.
Compliant to UIDAI Registered Device Level 1 UIDAI Aadhaar Registered Device Technical Specification - Version 2.0 (Revision2) Dated: 18th July 2017
Functionalities:
* Lightweight and durable design
* Captures high-quality fingerprint images
* FAP20 - Large active platen area
* Embedded FMR extractor and matcher
* Encrypted USB communication
* Secure boot with RSA signature verification
* Finger capture and extraction module in TEE (Trusted Execution Environment)
* Secure processor with hardware RSA keystore, Signing, RSA-2048, AES-256, SHA-256, TRNG
* Live Finger Detection Through AI Based Application
Applications:
* Individual verification
* Aadhaar authentication
* Identification among embedded local set
|
Performance Specifications:
|
Parameter
|
Specification
|
|
Resolution
|
500 ppi
|
|
Active Platen Area
|
15.24x20.32mm
|
|
Gray scale
|
8-bit, 256 levels
|
|
Interface/Power
|
USB 2.0/3.0, Data and power
|
|
Operating Temperature
|
0° to 55° C
|
|
Storage Temperature
|
-10° to 60° C
|
|
Humidity
|
10-90%, non-condensing
|
|
Weight:
|
60 gm
|
|
Dimensions:
|
58x38x27mm
|
|
System Requirement
|
Windows 7 /8/10, Linux, Android
|
|
Certificate
|
STQC, Registered Device Level 0, FBI-PIV ,FCC, CE, ROHS
|
|
IP Rating
|
IP 54
|
|
